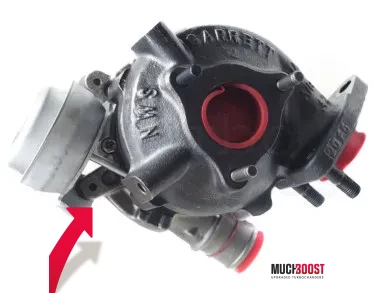

1.4 D4D 751418 Hybrid Turbo Upgrade Toyota Urban Cruiser, Auris, Corolla, Yaris

Description

MuchBoost 1.4 D4D Upgraded Turbocharger with an Enlarged Billet Compressor Wheel and a Clipped and Lightened/Larger High-Flow Turbine Wheel. It is based on a genuine Garrett turbocharger, which means that the installation is 100% P&P. The turbocharger is meant to work with Toyota Urban Cruiser, Auris, Yaris, and Corolla with the 1.4 D4D 90HP engines.

The turbo delivers up to 200% of stock power (90 HP extra) which means it could be perfect for a faster daily driver, to gain some additional power.

We have developed 2 modification options that allow you to reach anywhere from 160HP to 180HP.

MuchBoost 1.4D4D 160

Upgraded turbocharger with an estimated ~160HP at the crank. List of modifications:

• Precisely machined seal plates and compressor housing,
• More efficient and larger Custom Billet Compressor Wheel,
• Upgraded journal bearing system that allows the turbo to hold more boost,
• Clipped and Lightened Turbine Wheel,
• Genuine Garrett compressor housing,
• Genuine Garrett exhaust manifold,
• Genuine Garrett bearing housing,
• Original Garrett electronic actuator,
• Perfectly calibrated VNT system + dynamically balanced. We use a modern VISCOM flow bench and Schenck balancing machines,
• The compressor and turbine wheels are balanced separately, and then the whole core is high-speed balanced using VSR balancing machines at speeds similar to the level seen in the vehicle.

MuchBoost 1.4D4D 180

Upgraded turbocharger with an estimated potential of ~180HP at the crank. Modifications compared to the 160 option are the same, except:

• Additionally enlarged Billet Compressor Wheel.
• Larger High-Flow 9 blade Turbine Wheel,
• Precisely machined exhaust housing.

Other significant modifications

In order to reach that level of power, you need to adjust your fuel, exhaust, and cooling systems as well. A custom ECU tune will be necessary after mounting the turbo.

[row]
[one_third_column]

Cars

[/one_third_column]
[one_third_column]

Factory numbers

Engines

1,4 D4D, 1ND-FTV

[/one_third_column]
[one_third_column]

OEM number

[/one_third_column]
[/row]

(If your engine has a different code, please send us a message. We will verify it.)

Matters you should be aware of when placing your order.

1. 1. The warranty is 12 months without the limit of mileage.
   2. We need around 2 weeks to perform and ship the upgraded turbocharger. In some complicated cases, it may take up to 3 weeks. Please realize that the turbo upgrades require precision. Especially, the machining process takes a lot of time. We don`t cut the corners. Thank you for understanding. The parcels in the European Union are shipped via DPD for just 25,00 EURO. UPS is used for orders besides the EU, it costs 99,00 EURO and 49,00 to the UK (DHL). The average delivery time is 3-5 working days.
   3. Every parcel is fully insured.
   4. If you didn`t find the turbo you need, feel free to contact us. We are able to perform many more upgraded turbochargers than you can find on the site. Our development department works permanently on the new models.
   5. Do you have a workshop, are you an influencer or seller of tuning parts? We are open to cooperation by offering discounts and refunds.
   6. During placing your order, please provide information as follows:

• • the engine code,
  • the car model,
  • the stock power,
  • the VIN number

These details are helpful to make the turbo correctly.
